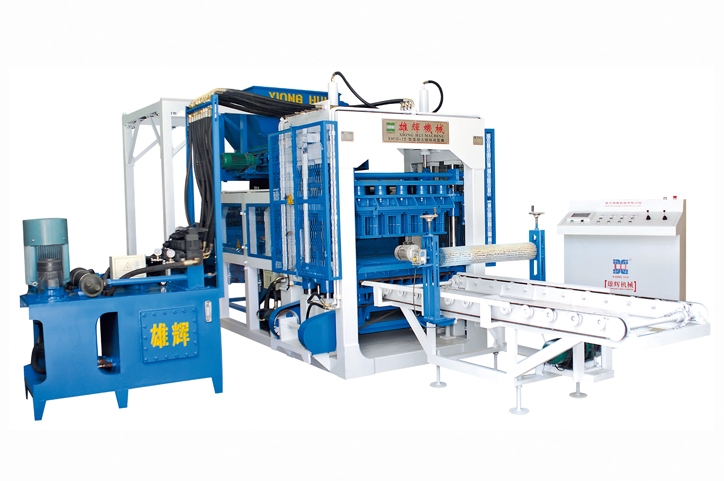

XH10-15 Block machine
Main Technical Characeristic
The whole production line consists of four parts: batching& mixing system, forming system, automatic transferring system and Cubering system which are controlled automatically, with PLC separately.
The production capacity depends on this machine and it is also the essential part of the whole production line. You can change moulds on this part to make different shapes of concrete blocks, bricks, colored-paving stones and curbs.
|
Item
|
Data
|
|
Dimension
|
12800×3000×2800 mm
|
|
Rating pressure
|
21Mpa
|
|
Vibration type
|
Table vibration
|
|
Vibration frequency
|
2800~4500 r/min.
|
|
Pallet size
|
PVC
|
1080×850× 25 mm
|
|
Bamboo
|
1080×850× 25 mm
|
|
Wooden
|
1080×850×25mm
|
|
Cycle time
|
15~25Sec.
|
|
Total power
|
43.5 KW
|
|
Overall weight
|
13,80 KG
|
The Production Capacity of XH 10-15
The XH 10-15 can make various designs of concrete blocks, bricks, colored paving-stones and curbs only by changing the mould. And all moulds can be made according to customer’s drawings.
|
Name Specification
(LxWxH)
|
|
Pcs/mould
|
Pcs/ 8 hour
|
|
Hollow Block
390x190x190mm
|
|
10
|
15000
|
|
Porous Brick 240x115x90mm
|
|
30
|
45000
|
|
Solid Brick 240x115x53mm
|
|
52
|
78000
|
|
Holland Brick 200x100x60mm
|
|
28
|
34000
|
|
I-Shape 200x160x60mm
|
|
18
|
21600
|
|
Ripple Shape 225x112.5x60mm
|
|
24
|
28800
|
|
Square Shape 250x250x60mm
|
|
12
|
14400
|
|
Triangular (Diagronal250x60mm)
|
|
12
|
14400
|
|
Hexagonal paving stone
( Diagonal250x60mm)
|
|
12
|
14400
|
|
Double 8-Shape grass-plant paving-stone 400x400x60mm
|
|
4
|
4800
|
1. Fully automatic
2. Produce all kinds of bricks
3. High efficiency
4. Best selling
5. Competitive price
Main Technical Characeristic:
The whole production line of QT10-15 Block Making Machine consists of four parts: batching& mixing system, forming system, automatic transferring system and Cubering system which are controlled automatically, with PLC control board separately.
The production capacity depends on this machine and it is also the essential part of the whole production line. You can change moulds on this part to make different shapes of concrete blocks, bricks, colored-paving stones and curbs.
Spare Parts Brand:
All electrical components are famous brand Germany Simens & Japan Mitsubishi & Omron, France Schneider, ABB
Mould Description:
1. Mould made by heat treatment, carburization process to enable long life span, above 100,000 times usuage.
2. By replacing different moulds, thus enable one block forming machine can make different bricks of various application, such as hollow block, solid block, paver, interlocking brick, curbstone, grass brick, slope protection bricks, cellular bricks, each the dimension also can varies.
3. Press head adopts mechanism,electric and hydraulic drive synchronously. Guarantee each formed bricks the same height with very slight errors.
4. Cutomized made mould. Customer send requirement or drawing, forwarding to our engineer drawing -feedback to customer rechecking and confirmation-fix mould designation before manufacturing.
The Production Capacity of XH 10-15 Block Making Machine:
The XH 10-15 Block Making Machine can make various designs of concrete blocks, bricks, colored paving-stones and curbs only by changing the mould. And all moulds can be made according to customer's drawings.
|
Specification & capacity of main products
|
|
Items
|
Size(l*w*h)
|
PCS./mould
|
Pcs./hour
|
Pcs./8hour
|
Pcs/year (300days)
|
|
Hollow blocks
|
390*190*190mm
|
10
|
2400
|
19200
|
5760000
|
|
Perforated blocks
|
240*115*90mm
|
24
|
5760
|
46080
|
13824000
|
|
Solid bricks
|
240*115*50mm
|
52
|
12480
|
99840
|
29952000
|
|
Paver
|
200*100*60mm
|
28
|
6720
|
53760
|
16128000
|
|
Technical data
|
|
Dimension
|
12800×3000×2800 mm
|
|
Rating pressure
|
21MPa
|
|
Vibration
|
Table vibration
|
|
Vibration frequency
|
2800- 4500r/min
|
|
Pallet size
|
Bamboo 1080×850× 25 mm
|
|
Pallet size
|
PVC 1080×850× 25 mm
|
|
Pallet size
|
Wooden 1080×850×25mm
|
|
Cycle time
|
15~25Sec.
|
|
Power
|
43.5 KW
|
|
Weight
|
13,80 KG
|
|
Raw Material
|
Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, haydite, wet ash in power plants, dry ash, hybrid ash, boiler slag, spontaneous combustion coal gangue, mountain flour, mine tailings, scoria, carbide slag, water-granulated slag, wind-granulated slag, dry slag, smelting slag, sulfuric acid residue, phosphate fertilizer slag, caustic sludge, laterite in aluminium manufacturers, electrolytic copper slag, stonework waste, potsherd, waste brick powder, construction waste, etc (among which one or two kinds are enough.
|
|
Finish Products
|
baking-free bricks, interlocking, garden & landscaping bricks, slope blocks, brick for parking area, squares, hollow block, masonry products, porous brick, perforate brick, cellular bricks, pavers and so on
|
|
Products Application
|
Suitable for buildings, road paving, squares, gardens, parking area,landscaping, city constructions, etc.
|
