Product Details

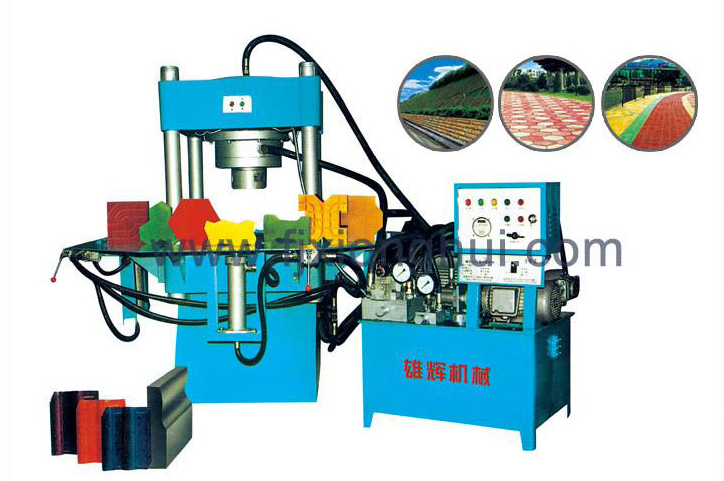

XH1500 hydraulic forming machine adopts mass flow automatic variable pump and electromagnetic hydraulic valve, which is high pressure, rapid lifting, compression automatic bounce back, and adjustable compressing time. Multifunction increases productivity. Applicable for producing of various color road surface brick, square sod brick, brick for slope protection and dike dam, curb for city road and expressway.
Technical data:
Max Pressure: 1500KN
Motor Power: 7KW
Electrical source (V/HZ): 380V/50Hz
Total weight (KG): 3600
Oil pump pressure: 31.5MPa
Oil pump output capacity: 25ML/min
Overall Specification: 2100×2100×2000 (mm)
Output Capacity: Paver: 3000-4000pcs/day (paver size: 200*100*100mm)
Curbstone: 800-900pcs/day (size: 500*600mm)
(It includes the following machine items: the host machine (XH150O), a hydraulic station, a control unit, 2 trolleys, four lifters，350 Vertical mixer)
Technical Parameters
Number of manufactured products
