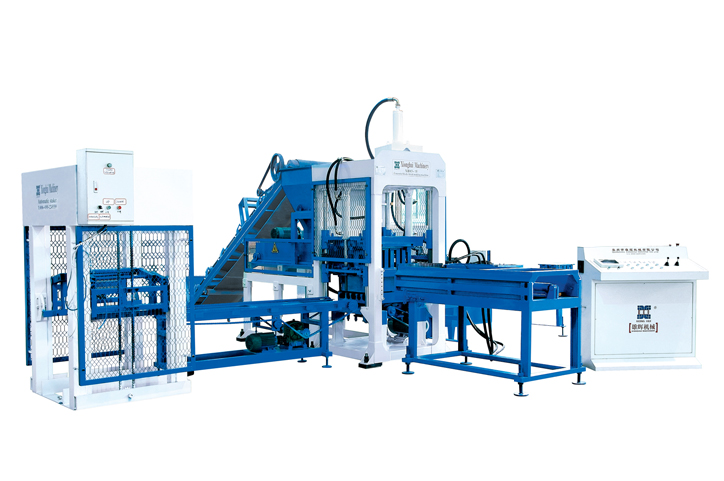

XH03-20 Automatic Block Forming Machine

Product Details

1) Multi-functional: The machine can make different products by changing mould, like hollow block,solid brick, paver and so on .

2)Quick Speed: The above and below mould inserts can pulls out quickly with high-powered hydraulic pump. Meanwhile, all the processed like feeding concrete into mould and preparing concrete are finished at the same time.

3)The machine adopts intelligent PLC control system with program control and automatic diagnostic program to realize the manless operation.

4)High Quality:　The switches and electronic is using top brand. Mould is processed by heat treatment, carburization.

5)The block/b ricks can be stacked automatically after moulding to save labours for taking finished blocks to place.

6)The mature and efficient vibration system. The impact of flexible and efficient vibration system, which is domestic initiative. This technology has been applied on block machine series for so many years, which has the mature and reliable advantages.

Technical Parameters

Overall dimension(mm)

8000×6000× 2500mm









Pallet size

680×530mm









Machine weight

3.7T









Control system

Automatic









Rating pressure

10MPa









Vibration frequency

2800-4500R/min









The frequency of Vibration(hz)

50-100hz









Circle time(s)

15-20s









Installed capacity(kw)

18kw





















Production capacity:























Specification of production

Size of Blocks

pcs/pallet

Pcs/h

Pcs/8hs

Pcs/300days

Hollow Blocks

390×190×190

3

540

4320

1296000

Cellular Bricks

240×115×90

10

1800

14400

4320000

Paving  Bricks

240×115×53

12

2160

17280

5184000

Solid bricks

200×100×60

20

3600

28800

8640000
